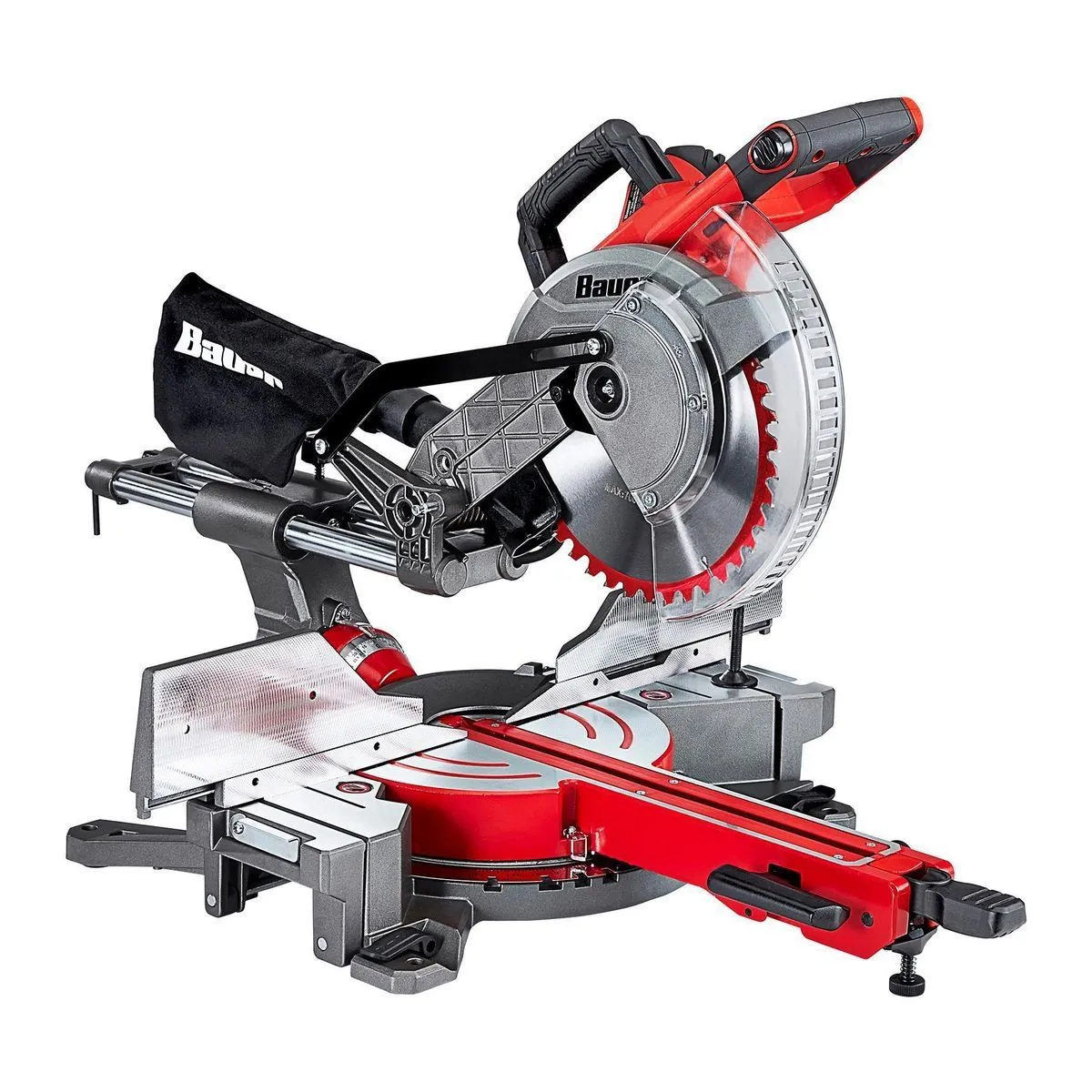

Name: 10 in. Dual-Bevel Sliding Compound Miter Saw
SKU: 260323
Availability: InStock

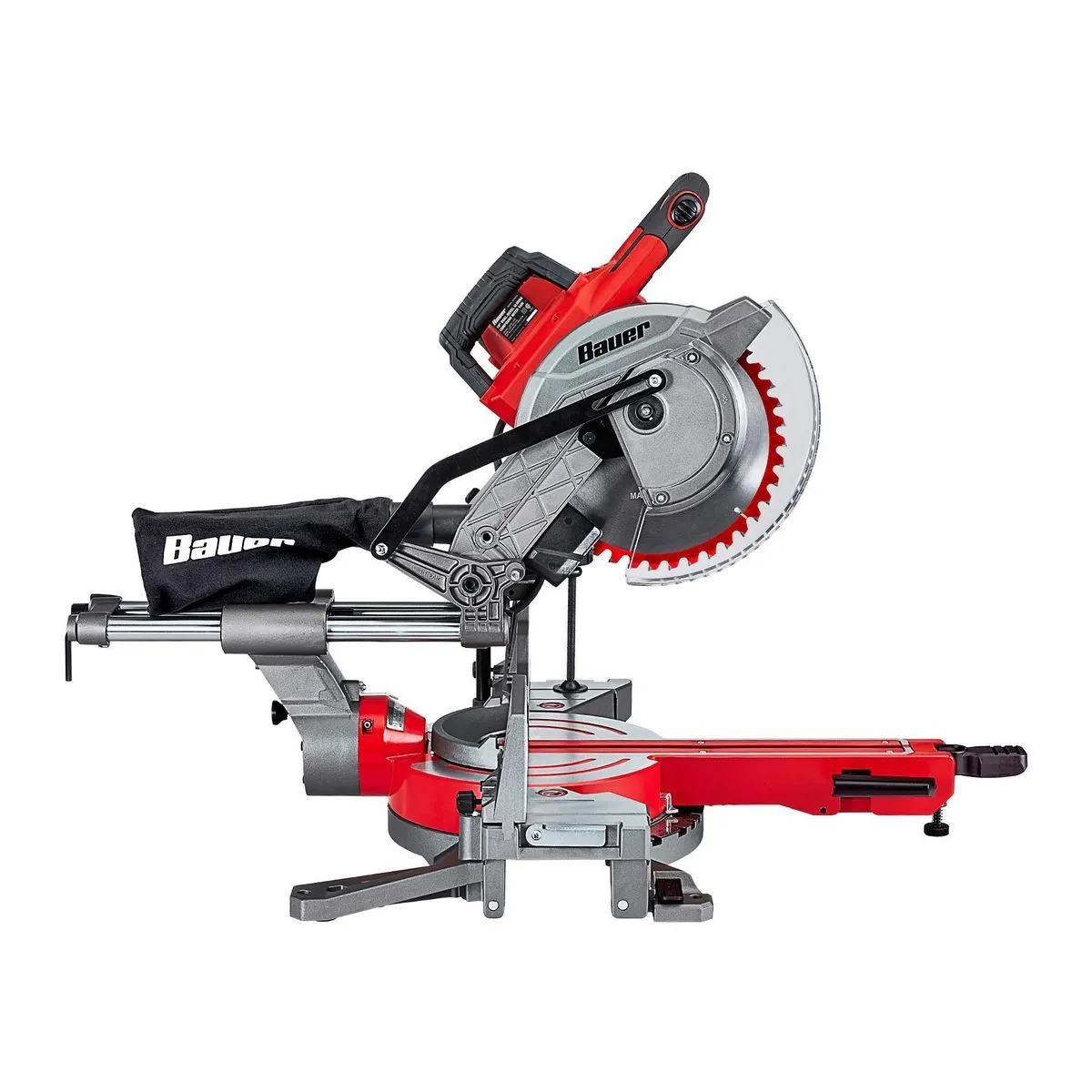

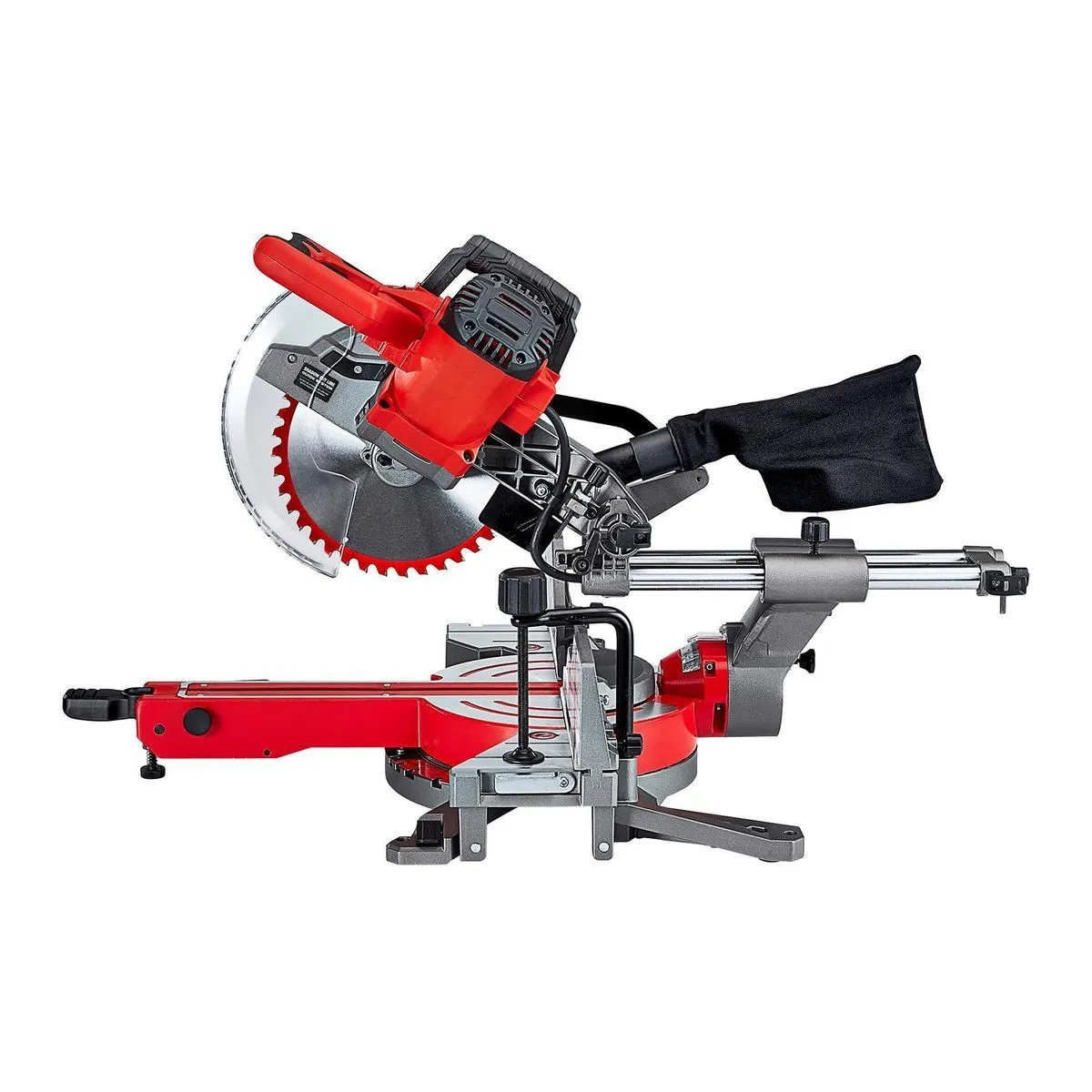

10 in. Dual-Bevel Sliding Compound Miter Saw

Dual-Bevel Sliding Compound Miter Saw brings together ultimate precision and ease of setup to create the perfect everyday saw.

Estimated delivery dates: Apr 23, 2026 - Apr 27, 2026

Description

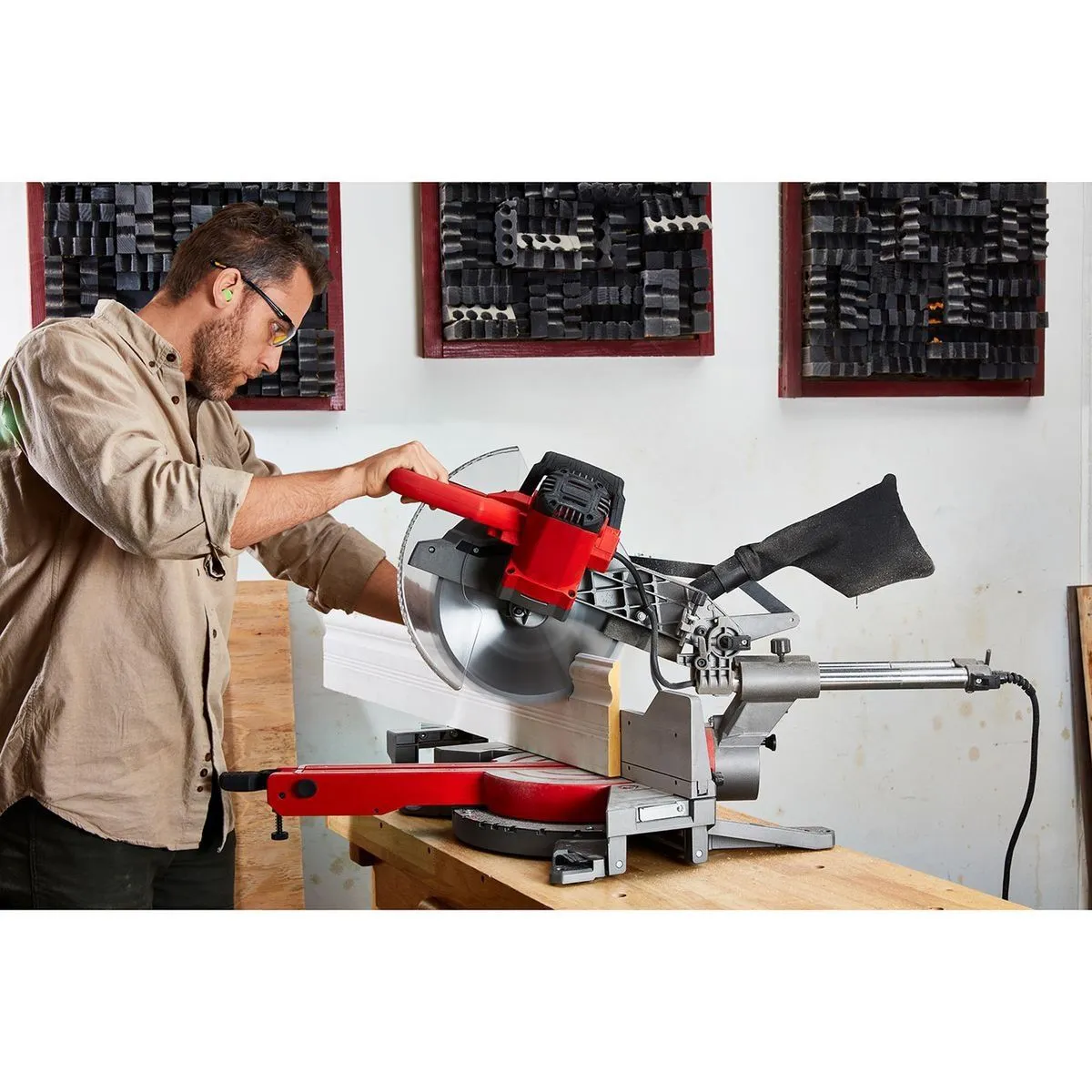

10 in. Dual-Bevel Sliding Compound Miter Saw is designed for ultimate precision and easy setup. The front bevel control allows easy, precise adjustments without reaching around to the back of the saw. The sliding and locking head provides a crosscut capacity up to 3-1/2 in. x 12-1/2 in. The sliding fence handles nested crown molding up to 5 in. A stainless steel miter detent plate with 10 positive stops – up to 60° miter right, 52° miter left – has a precision override lever for angles between detents.

3-1/2 in. x 12-1/2 in. horizontal cut line capacity, 5-1/2 in. vertical baseboard capacity
Shadow Cut Line Guide System for precise, accurate cuts every time

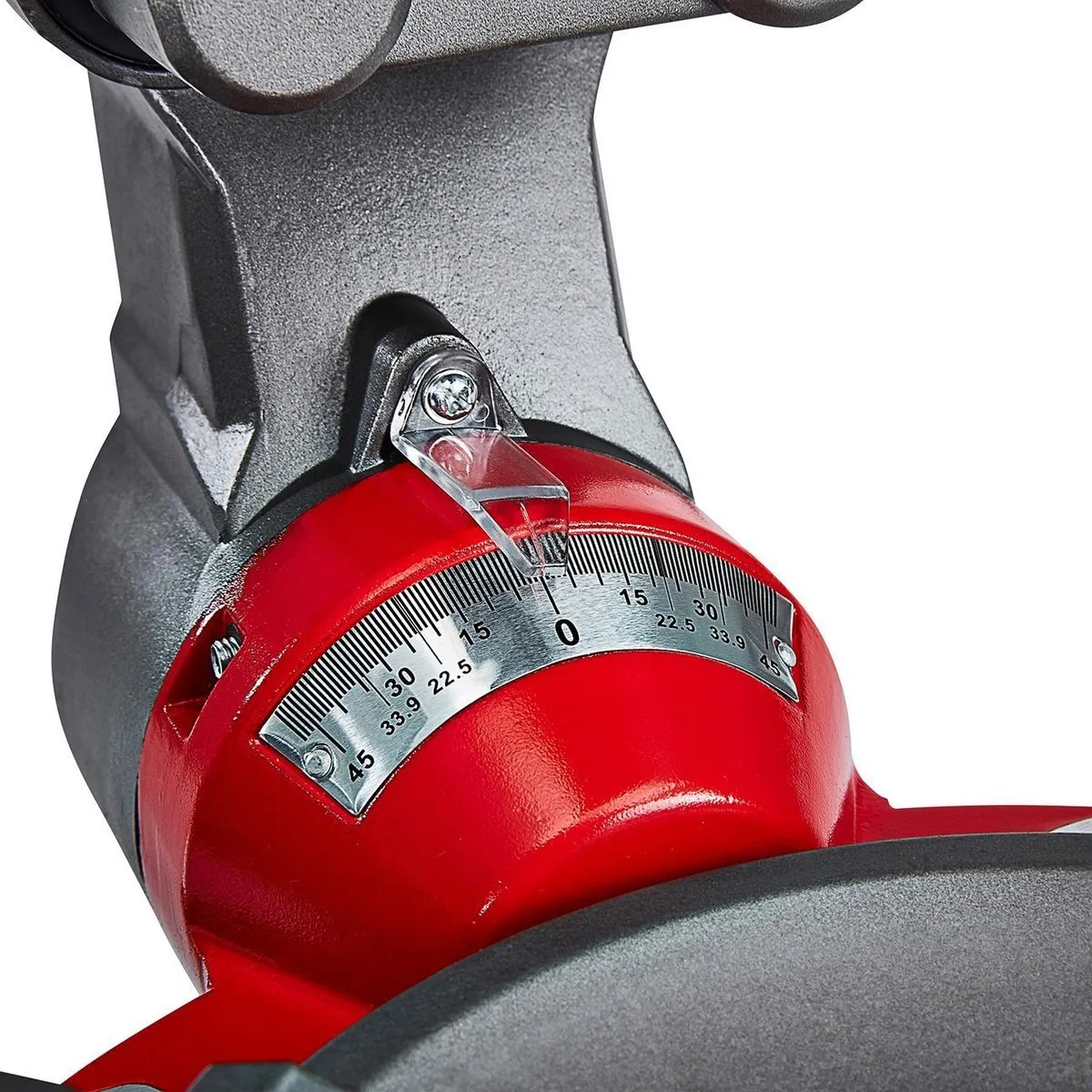

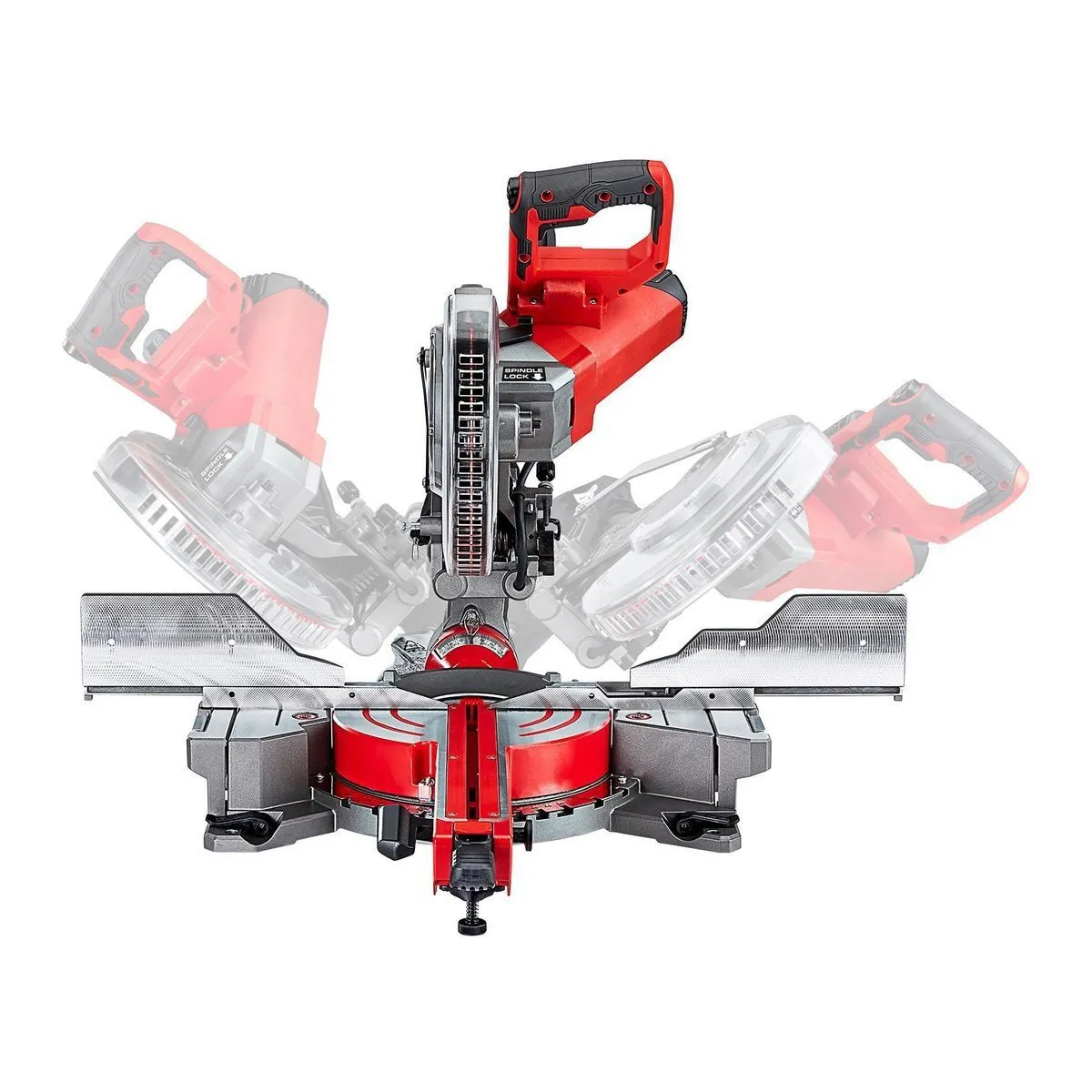

Double-bevel design with oversized scale makes bevel-angle adjustments accurate and easy
Front bevel control for 48° bevel left or right

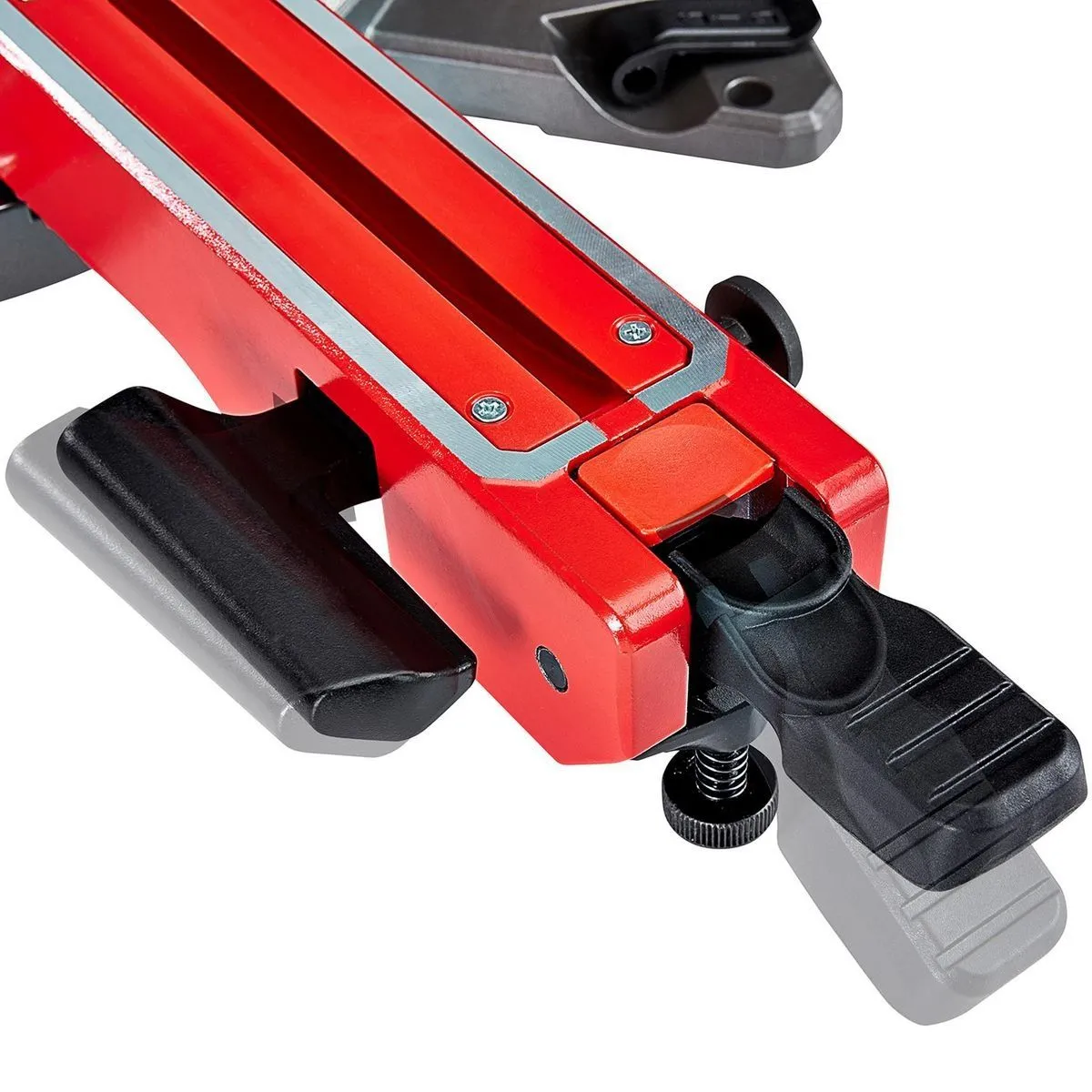

Miter gauge with 52° L, 60° R with 10 stops plus override for fine adjustments
High-output 15 amp motor delivers 4500 RPM for high-performance cutting
Built-in sliding extension tables with material stops for easy setup
Electric brake stops the blade in seconds

Additional information

Model	19743E-B
AC Volts	120
Accessories Included	Dust bag, blade wrench, material clamp, side extension tables
Amperage	15
Arbor Size	5/8 in.
Blade Size	10 in.
Certification	CSA
Speed (Max.)	4500 RPM
Product Height	17.5 in.
Product Length	32 in.
Product Weight	46 lb.
Product Width	21.6 in.
Shipping Weight	54.01 lb.
Bevel Angle	48°
Power Cord	8 ft
Cut Capacity Vertical	5-1/2 in.
Cut Capacity Horizontal	3-1/2 in. x 12-1/2 in.
